What Are 12V Battery Testers and Why You Need One

A 12V battery tester is a diagnostic tool that measures the health, charge state, and cranking capacity of your vehicle's battery. Simple as that. Whether you're a weekend mechanic or running a busy workshop, these devices save you from the guesswork that leads to breakdowns on cold January mornings.

I teach physics at a secondary school off Castlereagh Road in Belfast, but I've been tinkering with cars since my twenties. Last winter, my Mondeo refused to start outside Tesco. Embarrassing? Absolutely. Could I have prevented it with a decent 12v battery tester? Without question.

Here's the thing most people don't realise. A battery can show 12.6V on a multimeter and still be completely knackered internally. Voltage alone tells you almost nothing about actual capacity. A proper car battery tester measures CCA (Cold Cranking Amps), internal resistance, and state of health — giving you the full picture in under 10 seconds.

The market for battery testers 12v has grown considerably this spring, driven partly by the increasing complexity of modern vehicle electrical systems. Start-stop technology, dash cams, heated seats — they all put extra strain on your battery. Testing quarterly is now considered best practice by most garages.

Types of Battery Testers for Cars: Which Suits You?

Not all testers work the same way. The technology inside determines accuracy, speed, and price.

Conductance Testers

These send a small AC signal through the battery and measure how well it conducts. They're non-invasive, fast, and won't drain the battery during testing. Most professional-grade units — including the TOPDON battery tester range — use conductance technology. Results in 3-5 seconds, no load applied.

Load Testers

Old school but still used. A battery load tester 12v applies a real electrical load (typically 100-150A) and watches how voltage holds up. They're bulky, can drain weak batteries further, and take longer. Honestly, I've moved away from these entirely. They have their place in heavy commercial settings, but for most car owners they're overkill.

Digital Analysers

The middle ground. A battery analyzer 12v uses algorithms to interpret voltage patterns under minimal load. More accurate than a basic multimeter, less sophisticated than conductance testers. Decent for home use if budget's tight.

Smart Charger-Testers

Combination units that both test and charge. A smart battery charger 12v 24v with built-in diagnostics can maintain your battery over winter and alert you when replacement's needed. Workshop battery charger 12v 24v models often include print capability for customer reports.

Key Features to Look For in Battery Testers 12V (2026 Update)

The best car battery tester isn't necessarily the most expensive one. It's the one that matches your actual needs. Here's what matters.

CCA Range

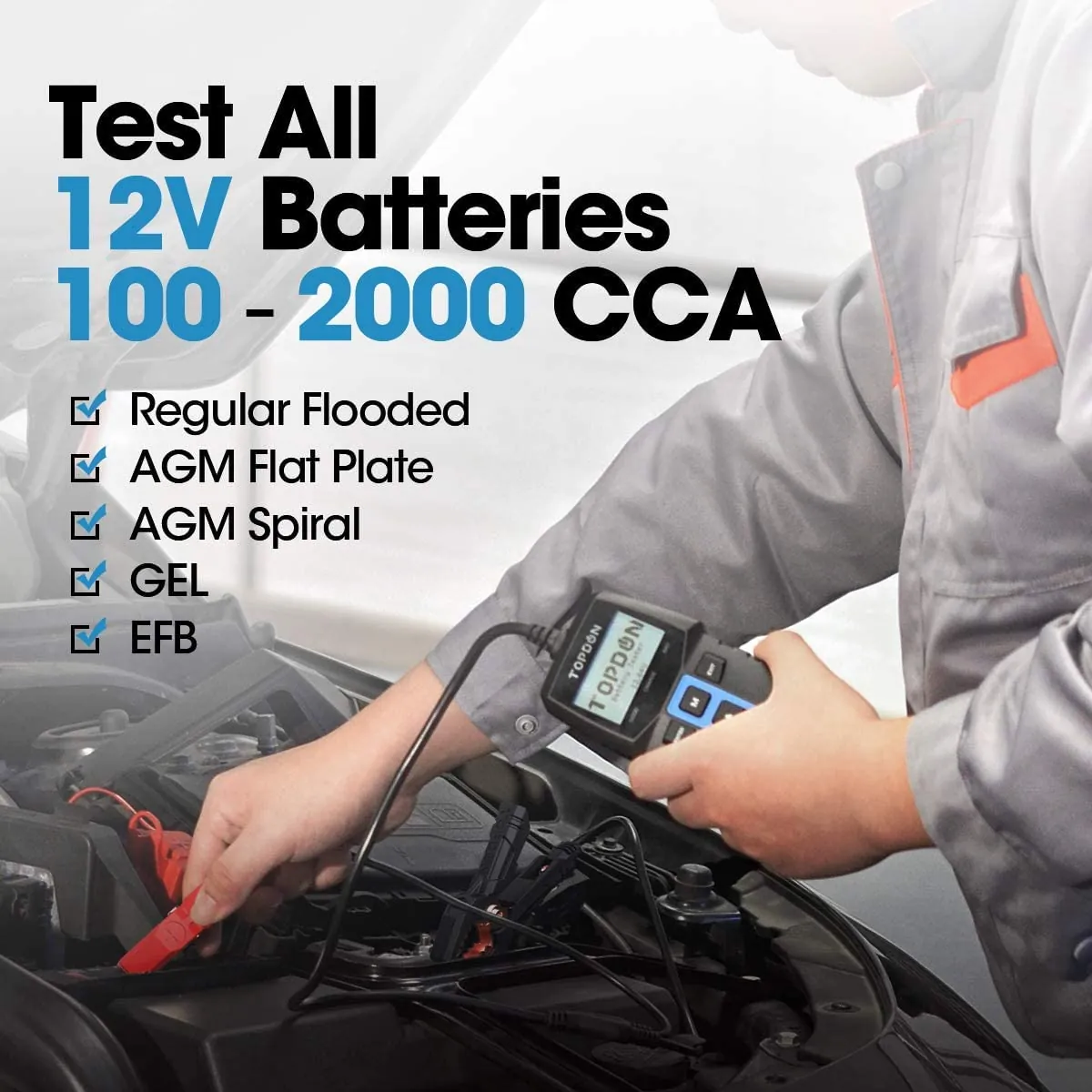

A CCA battery tester should cover at least 100-2000 CCA to handle everything from motorcycle batteries to large diesel engines. The TOPDON BT200 covers 100-2000 CCA, which sorts most vehicles on UK roads.

Battery Type Compatibility

Your tester must support the chemistry you're working with. At minimum: standard flooded, AGM, and gel. An AGM battery tester function is essential now — most cars built after 2015 with start-stop use AGM batteries. A good lead acid battery tester should handle all subtypes without manual calibration.

Display and Reporting

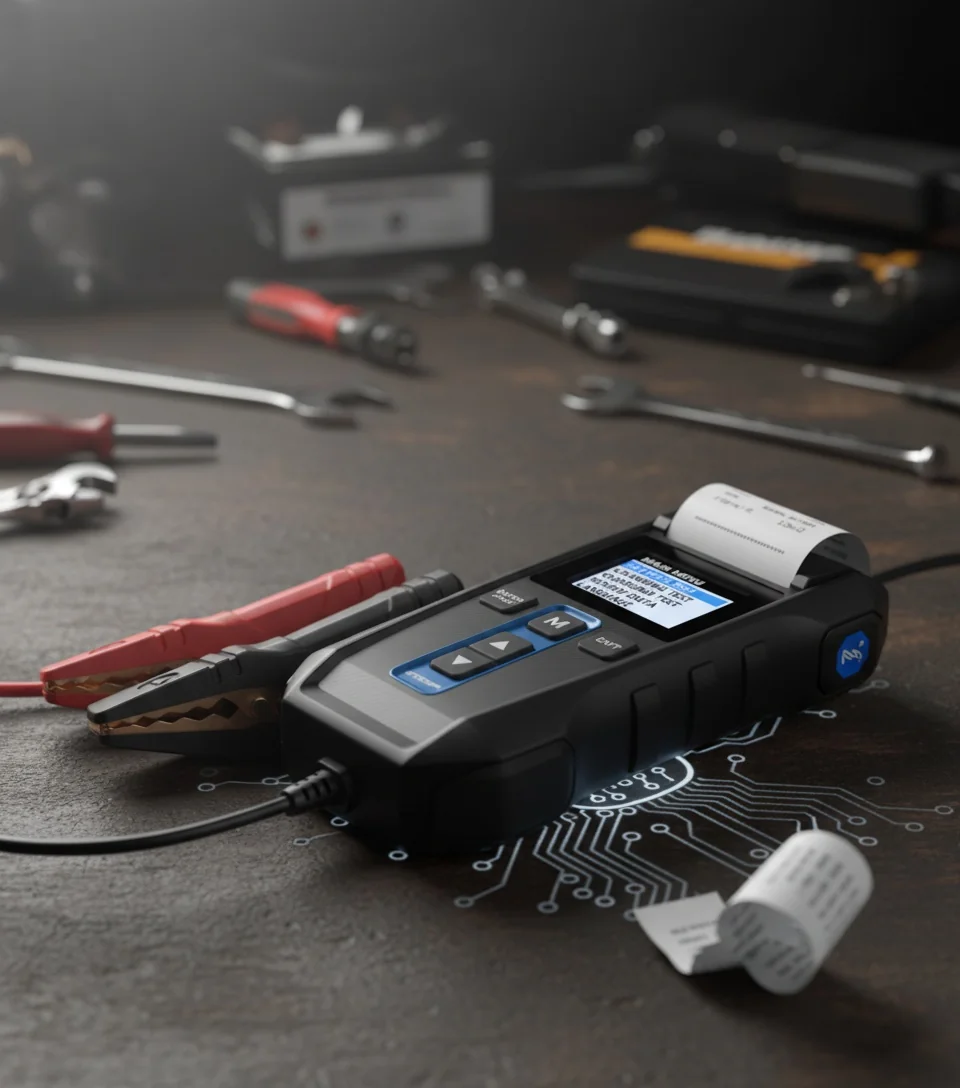

Clear results matter. Look for testers showing: voltage, CCA measured vs rated, state of health percentage, and a pass/fail verdict. A battery tester with printer is brilliant for workshops needing customer-facing evidence. Saves arguments, trust me.

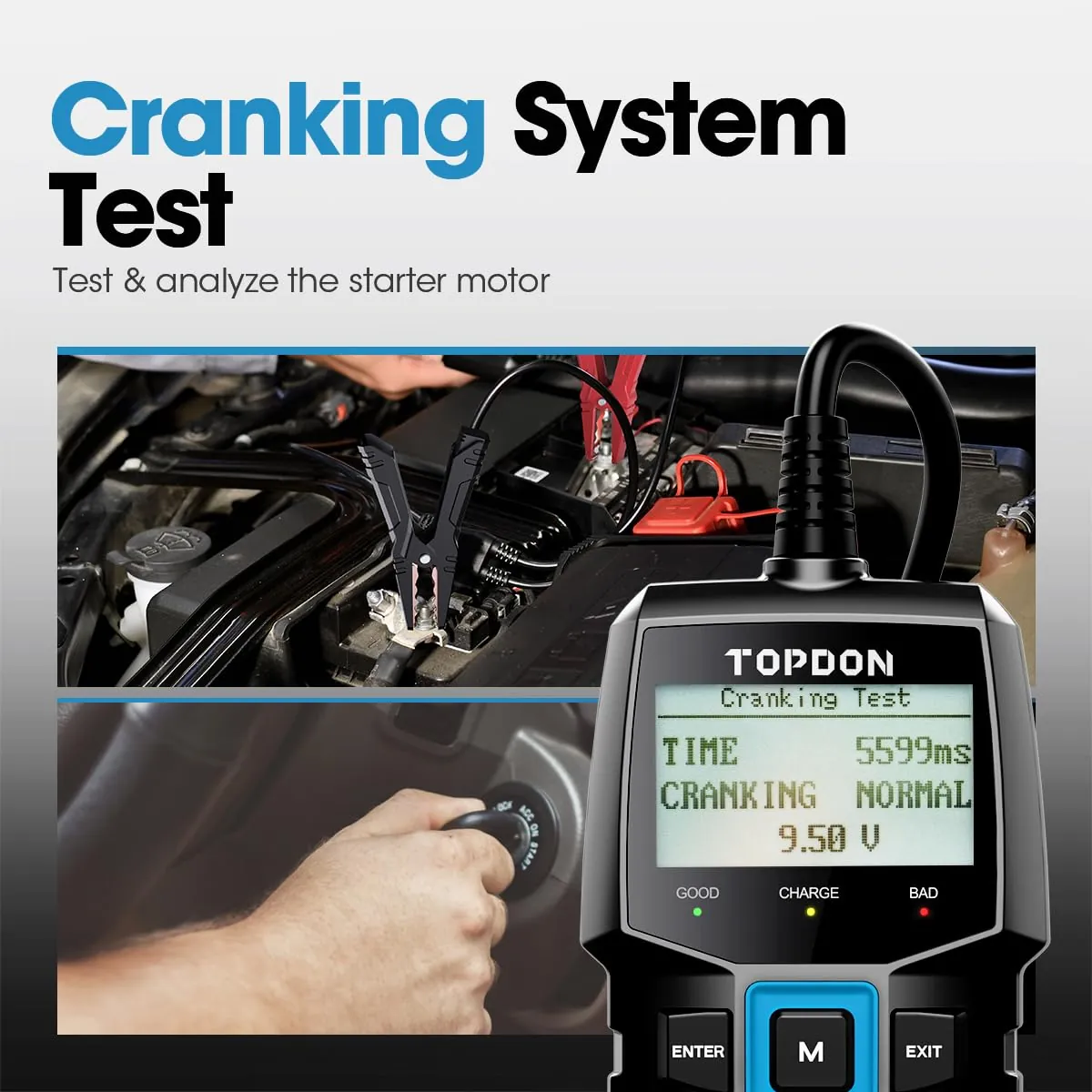

Cranking and Charging System Tests

The best battery tester for cars doesn't just test the battery — it checks your alternator output and starter motor draw too. If your alternator's only pushing 13.2V instead of 14.1-14.7V, you'll know before it fails completely.

Build Quality and Safety

Reverse polarity protection is non-negotiable. Clamp quality matters too — cheap spring clamps slip off terminals mid-test. The Health and Safety Executive provides guidance on working safely with vehicle batteries, including proper PPE and ventilation requirements.

Battery Tester Comparison: Specs, Features, and Prices

I've put together this comparison based on what's actually available to UK buyers right now. Prices checked June 2026., a favourite among Britain’s tradespeople

Look, I know £206.49 seems almost too cheap for something this capable. But I've used the TOPDON car battery tester on my own vehicles and my neighbour's Transit van — spot on results every time. The cranking and charging system tests alone justify the price. That said, if you're running a commercial garage doing 20+ tests daily, you'll want something with a printer and Bluetooth reporting.

How to Test a 12V Car Battery Properly

Getting accurate results requires proper technique. Skip these steps and you'll get misleading readings.

Before You Start

Turn off all electrical loads — headlights, radio, heated seats, everything. The vehicle should have been sitting for at least 2 hours (ideally overnight) to get a true resting voltage. Surface charge from recent driving skews results upward.

Step-by-Step Process

1. Connect the red clamp to the positive terminal (+). Firm connection, no wobble.

2. Connect the black clamp to the negative terminal (−).

3. Select your battery type on the tester (flooded, AGM, gel, or EFB).

4. Enter the rated CCA — this is printed on your battery's label. Common values: 500-800 CCA for most cars.

5. Run the test. Takes 3-10 seconds depending on your unit.

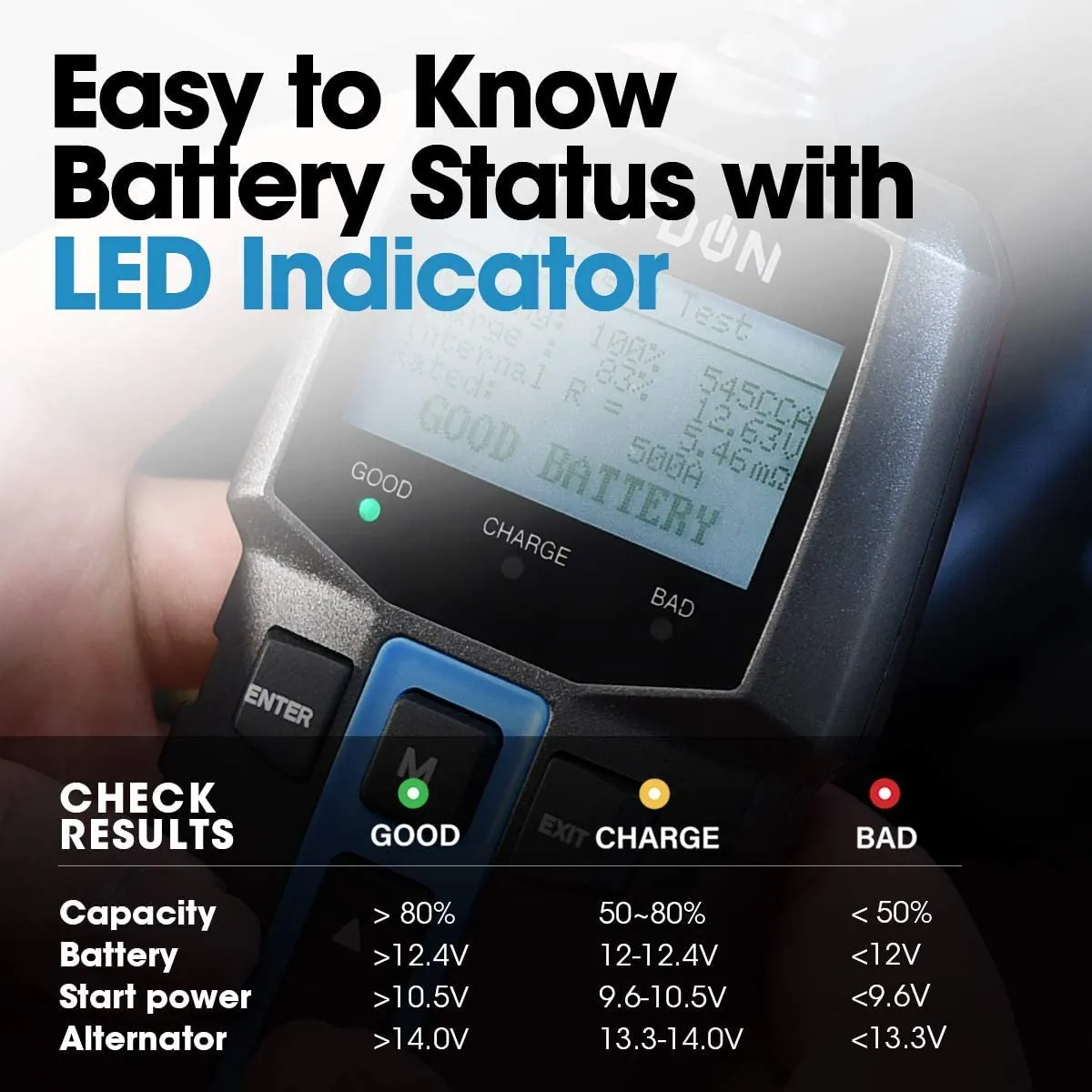

6. Read results: anything above 70% state of health is generally fine. Below 50%? Start shopping for a replacement.

Interpreting Results

One thing I've learned the hard way — always clean the terminals before testing. Corrosion creates resistance that makes a good battery look bad. A wire brush and 30 seconds of effort can completely change your reading. Even a damp cloth helps if you haven't got a brush handy.

For guidance on safe working practices around vehicle batteries, the HSE's electrical safety guidance covers the basics of avoiding short circuits and acid exposure.

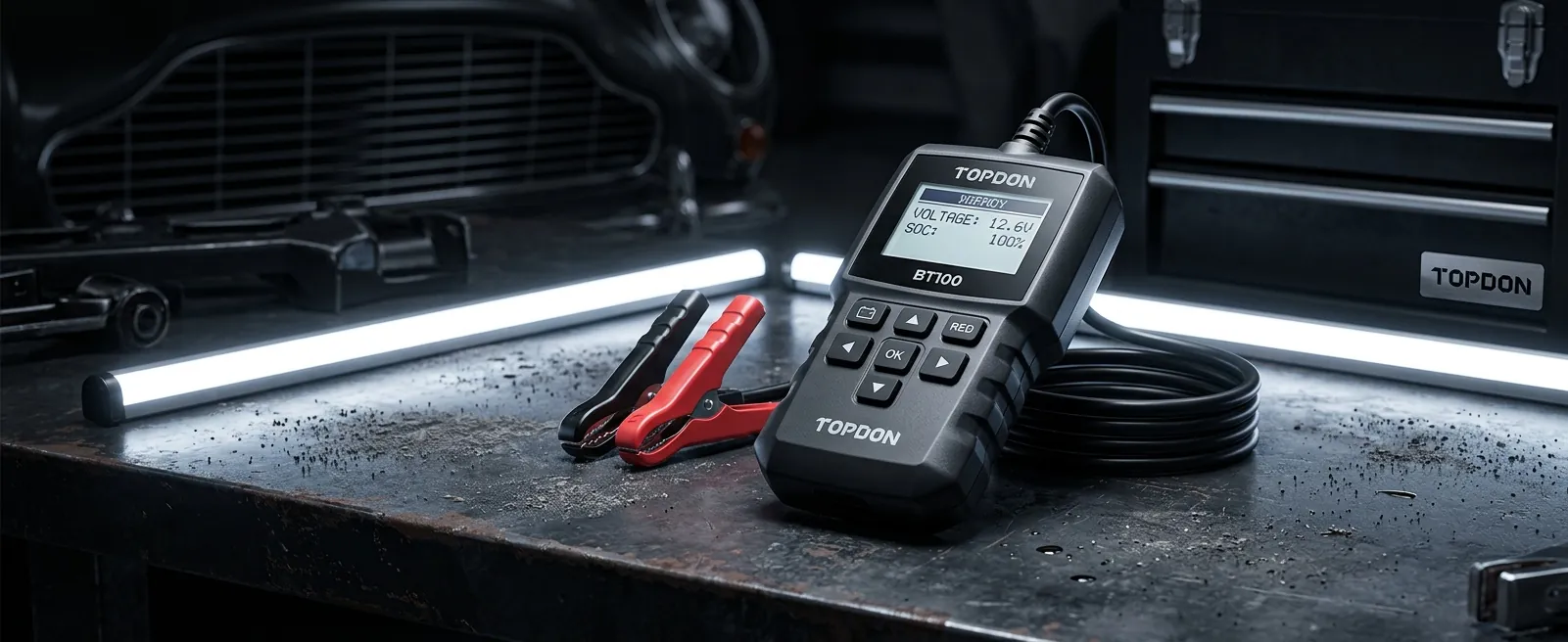

TOPDON Battery Testing Equipment: Real-World Performance

The TOPDON battery range has carved out a solid reputation among UK car owners and independent garages. Their approach is straightforward: professional-grade accuracy at prices that don't require a business loan.

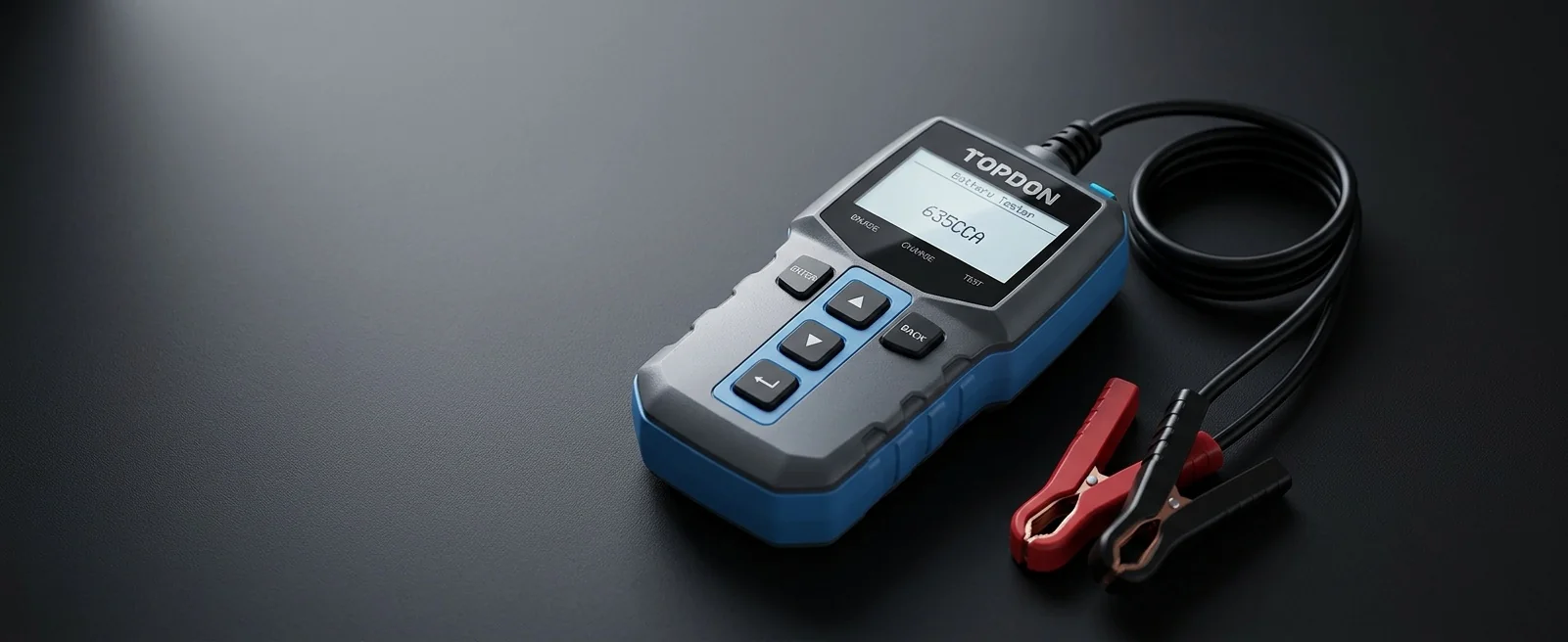

The TOPDONBATTERY Car Battery Tester Engine at £206.49 with free UK delivery is their entry point — and it's genuinely impressive for the money. I picked one up after seeing it recommended in a Belfast car forum. Tested it against my mate's Snap-on unit (which cost him over £300). Results were within 2-3% on every battery we tried. That's bang for your buck., popular across England

What You Get

CCA testing from 100-2000A. Cranking system analysis. Charging system verification. Support for flooded, AGM, gel, and EFB batteries. It won't print receipts or connect to your phone, but for diagnosing whether your battery needs replacing? Sorted.

TOPDON also produce the TOPDON jump starter range, which pairs nicely with their testers. Test first, jump if needed, replace if necessary. Logical workflow.

Worth the extra spend over a £12 voltage-only tester? Absolutely. Voltage tells you charge level. CCA testing tells you actual health. That's the difference between knowing your battery's at 12.5V and knowing it can only deliver 340 of its rated 680 cranking amps — which is the number that actually matters on a freezing Tuesday morning.

Common Mistakes When Testing Car Batteries

I see these errors constantly — from students, from neighbours, even from people who should know better.

Testing Immediately After Driving

Surface charge inflates voltage readings by 0.5-1.0V. Wait at least 2 hours. Overnight is ideal. I tested my Mondeo's battery straight after a 40-minute drive once and got 12.9V. Next morning? 12.3V. Massive difference in diagnosis.

Wrong Battery Type Selected

AGM and flooded batteries have different internal resistance profiles. Testing an AGM battery with the tester set to "flooded" gives inaccurate CCA readings — sometimes 15-20% off. Always check the label on your battery.

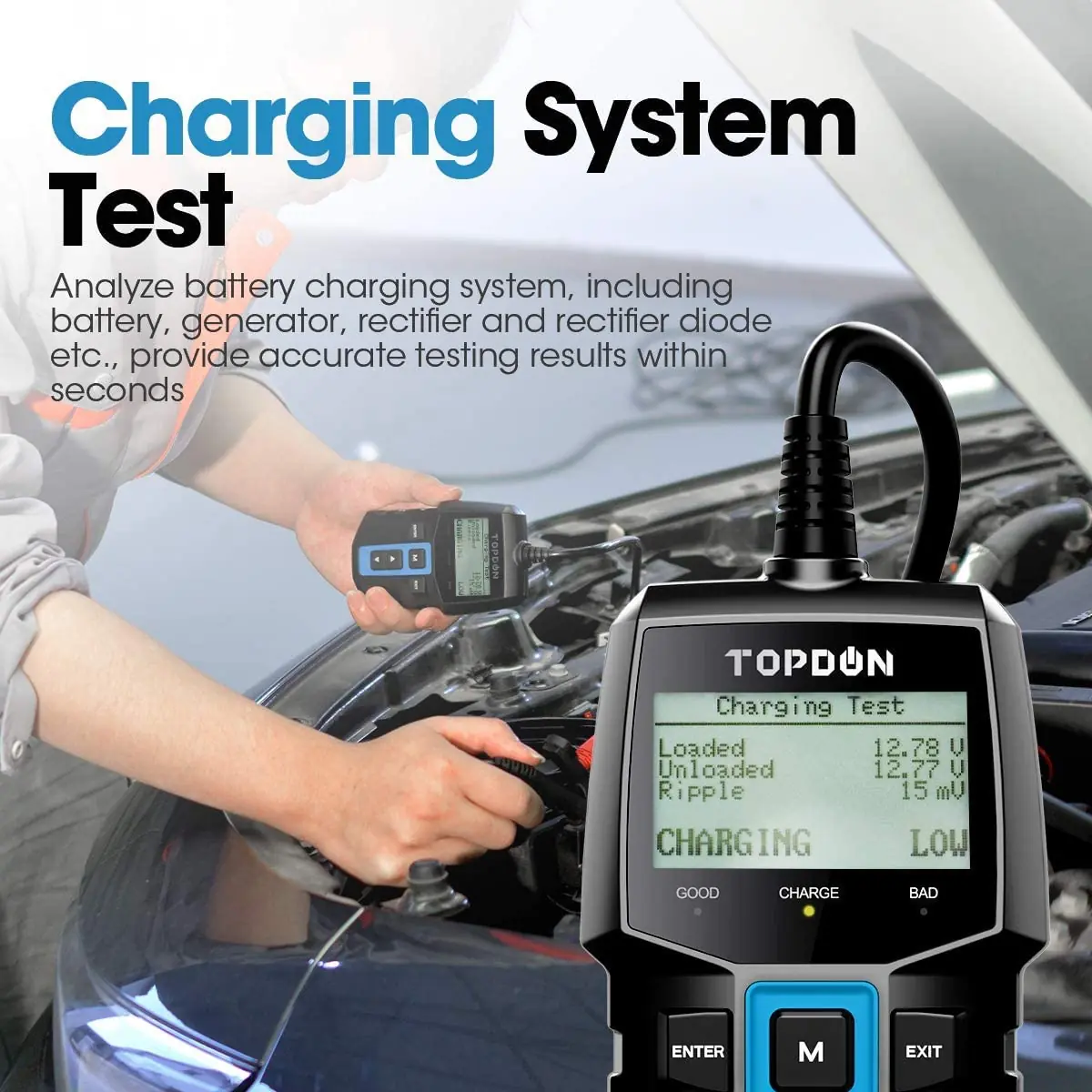

Ignoring the Charging System

A perfect battery will die within weeks if your alternator's underperforming. The best battery tester for cars checks both. Running voltage should sit between 13.8V and 14.7V at idle. Below 13.5V? Your alternator's on its way out.

Testing Only When Problems Appear

Preventive testing catches degradation early. Quarterly checks take 30 seconds. I test mine every time the clocks change — easy to remember. As that Reddit user with the 16-year-old BMW Varta battery discovered, some batteries last far longer than expected. But most don't. The average UK car battery lasts 4-5 years.

Products sold in the UK should meet relevant safety standards. The British Standards Institution (BSI) maintains standards for electrical testing equipment, and Which? regularly reviews automotive accessories for consumer safety.

Key Takeaways

• Battery testers 12v measure CCA and state of health — voltage alone can't tell you if a battery is failing internally.
• The TOPDON Car Battery Tester Engine costs £206.49 with free UK delivery and covers 100-2000 CCA across flooded, AGM, gel, and EFB types.
• Test quarterly at minimum — more frequently for batteries over 3 years old or vehicles with start-stop systems.
• Always select the correct battery type on your tester; wrong settings produce readings up to 20% off actual values.
• Check the charging system too — a healthy battery paired with a failing alternator (below 13.5V output) will die within weeks.
• Wait 2+ hours after driving before testing to avoid inflated surface charge readings.
• Replace when measured CCA drops below 50% of the rated value printed on your battery's label.
